| Place of Origin: | CHINA |
| ブランド名: | IKP |
| 証明: | CE/UL/REACH/ROHS |

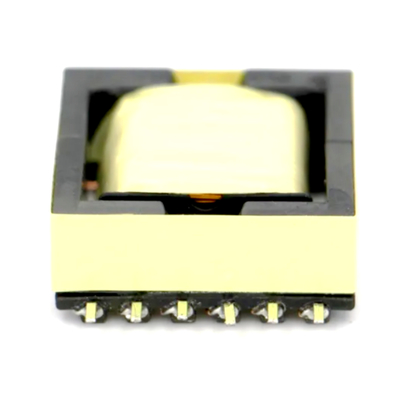

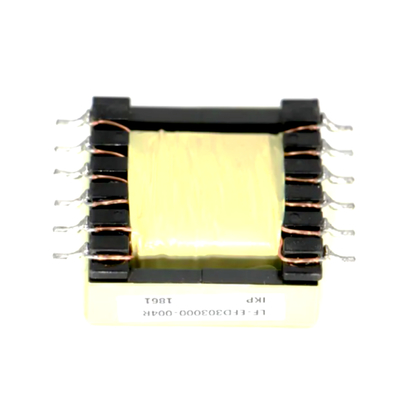

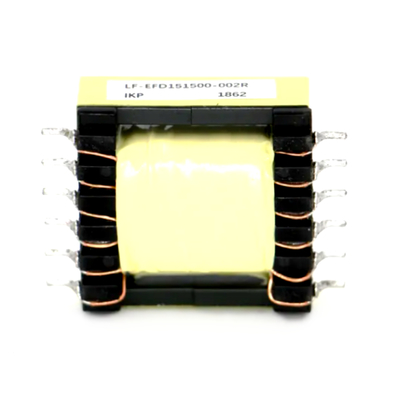

| Model Number: | LF-EFD151500-002R-4 |
| Minimum Order Quantity: | 1000 |
|---|---|
| 価格: | 0.45-0.55 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000/week |
| タイプ | 形状構造 | 寸法 | 電力範囲 | |||||
| A | B | C | D | E | F | |||
| EFD10 | SMD | 12.0Max | 5.1±0.5 | 14.6±0.5 | 0.3±0.1 | 2.54±0.3 | 12.4±0.5 | 12W Max |
| EFD12 | 14.0Max | 6.2±0.5 | 16.3±0.5 | 0.3±0.1 | 3.0±0.3 | 20.0±0.5 | 15W Max | |
| EFD15 | 16.5Max | 7.5±0.5 | 14.8±0.5 | 0.4±0.1 | 2.4±0.3 | 21.4±0.5 | 25W Max | |
| EFD20 | 22.0Max | 9.6±0.5 | 20.1±0.5 | 0.4±0.1 | 3.75±0.3 | 25.1±0.3 | 30W Max | |
| EFD25 | 26.5Max | 12.6±0.5 | 26.0±0.5 | 0.4±0.1 | 5.0±0.3 | 31.5±0.5 | 45W Max | |

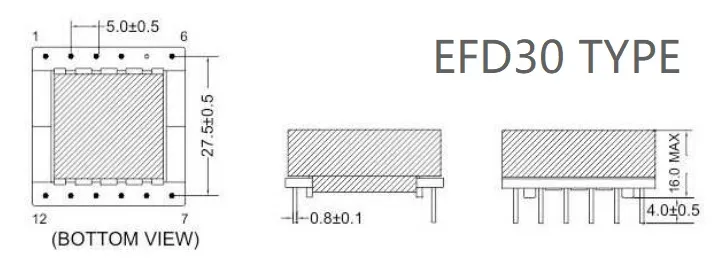

| EFD30 | 31.5Max | 11.8±0.5 | 31.0±0.5 | 3.7±0.3 | 5.0±0.3 | 40.0±0.5 | 100W Max | |
| EFD40 | 49.0Max | 12.7±0.5 | 44.3±0.5 | 4.2±0.3 | 5.0±0.3 | 65.0±0.5 | 350W Max | |
| EFD50 | 57.0Max | 12.7±0.5 | 48.7±0.5 | 4.6±0.3 | 5.0±0.3 | 72.4±0.5 | 650W Max | |
| EFD15 | 水平 | 16.0Max | 8.5±0.5 | 16.5±0.5 | 3.5±0.1 | 3.7±0.3 | 13.8±0.5 | 20W Max |
| EFD20 | 21.0Max | 10.5±0.5 | 20.5±0.5 | 4.0±0.1 | 4.0±0.3 | 17.0±0.3 | 25W Max | |
| EFD25 | 26.0Max | 13.5±0.5 | 26.2±0.5 | 4.2±0.1 | 5.0±0.3 | 22.5±0.5 | 45W Max | |
| EFD30 | 32.0Max | 15.0±0.5 | 31.5±0.5 | 3.5±0.3 | 5.0±0.3 | 28.0±0.5 | 100W Max | |
| EFD40 | 41.5Max | 22.0±0.5 | 46.5±0.5 | 4.0±0.3 | 5.0±0.3 | 35.0±0.5 | 350W Max | |
| EFD50 | 52.0Max | 13.0±0.5 | 48.7±0.5 | 2.5±0.3 | 5.0±0.3 | 72.2±0.5 | 550W Max | |
